Description

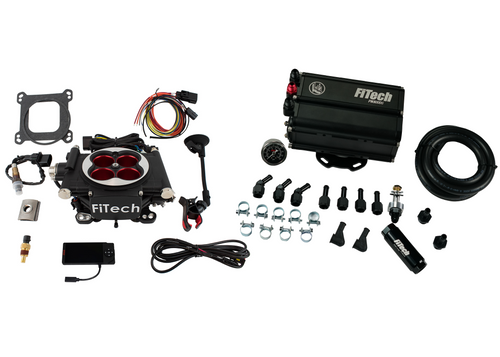

The FiTech EFI 4 600 HP Power Adder Matte Black w/ Force Fuel (35504) is a comprehensive solution for upgrading your high-performance engine to electronic fuel injection. Designed for engines producing up to 600 horsepower, this system is specifically tailored for applications with power adders like superchargers, turbochargers, or nitrous oxide. It replaces traditional carburetors with a throttle body injection system, offering improved performance, fuel efficiency, and drivability. The included Force Fuel system ensures consistent fuel delivery, especially under demanding conditions.
KEY FEATURES AND BENEFITS:
- High Power Support: Designed for engines up to 600 horsepower, compatible with boosted applications.
- Self-Tuning ECU: Simplifies installation and optimizes fuel delivery automatically.
- Force Fuel System: Ensures reliable fuel delivery, preventing fuel starvation.
- 850 CFM Throttle Body: Paired with 80 lbs/hr injectors for ample fuel and air supply.
- Wide-Band Oxygen Sensor: Provides accurate air/fuel ratio monitoring.
- Versatile Fuel Compatibility: Works with gasoline, E85, methanol, and alcohol fuels.
- Complete EFI Conversion Kit: Includes all necessary components for installation.
- 4.5-Inch Handheld Display: For easy tuning and monitoring.
SPECIFICATIONS:
- Maximum Horsepower: 600 HP
- Injection Style: Throttle body
- Timing Control: Yes
- Power Adder Compatible: Yes (Boost/Nitrous oxide)
- ECU Included: Yes
- Fuel Pump Included: Yes (External, 340 LPH)
- Transmission Controller: No
- Metering Style: Speed density (MAP-N)
- Throttle Body Mounting Flange: 4-barrel square bore (4150)
- Venturi Quantity: 4
- Venturi Diameter: 43 mm
- Airflow Rate: 850 CFM
- Injector Size: 80 lbs/hr
- Fuel Type: Alcohol, Gasoline, Methanol, Flex
- Compatibility: Universal fit for engines with 4-barrel square bore intake manifolds
HOW TO USE:
- Remove Existing Carburetor: Disconnect and remove the existing carburetor and related components.
- Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the 4-barrel square bore flange.
- Install Sensors: Connect the provided MAP, IAT, TPS, and oxygen sensors to their respective locations.
- Install Fuel System: Mount the Force Fuel system and external fuel pump, connecting the fuel lines as directed.
- Connect Wiring Harness: Route and connect the wiring harness to the ECU and engine sensors, following the provided instructions.
- Connect Display: Plug in the 4.5-inch display for monitoring and initial setup.
- Initial Setup: Follow the on-screen prompts on the display to input engine parameters and start the self-tuning process.
- Fine Tuning: Allow the ECU to self-learn and make adjustments. Further fine-tuning can be done through the display as needed.
BENEFITS OF USING THE FITECH EFI 4 600 HP POWER ADDER MATTE BLACK W/FORCE FUEL (35504):
- Improved Engine Performance: Enhances throttle response for a more engaging driving experience.
- Fuel Efficiency: Offers better economy compared to traditional carburetors.
- Simplified Tuning: Self-learning ECU reduces the need for constant adjustments.
- Consistent Fuel Delivery: Especially beneficial in boosted applications.
- Compatibility: Works with various fuel types for flexibility.
- Reduced Emissions: Contributes to improved drivability and environmental performance.
- Consistent Operation: More stable engine performance in varying weather conditions.
FEATURES:
- Cast Aluminum Throttle Body: Finished in matte black for durability and aesthetics.
- External Fuel Pump: Delivers a flow rate of 340 LPH.
- 80 lbs/hr Fuel Injectors: Ensure efficient fuel delivery for high-performance applications.
- Speed Density (MAP-N) Metering: Provides accurate fuel management.
- Complete Wiring Harness: Included for hassle-free installation.
- Force Fuel Surge Tank System: Ensures reliable fuel supply under various conditions.
-
