Description

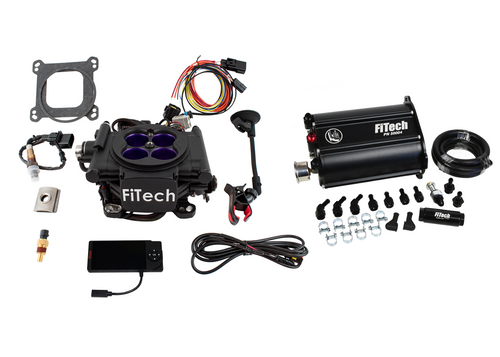

The FiTech Mean Street 800HP EFI System Master Kit w/ Force Fuel (35208) provides a robust electronic fuel injection solution for high-performance engines. Designed to replace traditional 4-barrel carburetors, this system supports up to 800 horsepower. It includes a Force Fuel delivery system for consistent fuel supply, an onboard ECU for self-tuning, and compatibility with nitrous oxide power adders.
KEY FEATURES AND BENEFITS:
- High-Horsepower Support: Suitable for applications up to 800 HP with an 850 CFM throttle body and 62 lbs/hr injectors.
- Consistent Fuel Pressure: The included Force Fuel system ensures reliable fuel delivery.
- Self-Tuning ECU: Simplifies setup and allows for user-tunable adjustments.
- Nitrous Oxide Compatibility: Provides added power potential for enhanced performance.
- Easy Installation: 4-barrel square bore flange design facilitates straightforward mounting.
SPECIFICATIONS:
- Maximum Horsepower: 800 HP
- Injection Style: Throttle body
- Airflow Rate: 850 CFM
- Injector Size: 62 lbs/hr
- Fuel Pump Flow Rate: 340 LPH
- Fuel System: Force Fuel (Surge Tank)
- ECU: Onboard, self-tuning, user-tunable
- Metering: Speed density (MAP-N)
- Power Adder Compatibility: Nitrous Oxide
- Throttle Body Mounting Flange: 4-barrel square bore
- Venturi Diameter: 43mm
- Display: 4.5 inch display
- Fuel Types: Alcohol, gasoline, methanol, flex
HOW TO USE:
- Remove Existing Carburetor: Disconnect fuel lines, linkage, and remove the old carburetor.
- Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the 4-barrel flange.
- Connect Fuel System: Install the Force Fuel system, connect fuel lines, and the included high flow fuel pump.
- Wiring Harness Connection: Connect the wiring harness to the ECU, sensors (MAP, IAT, TPS, oxygen), and power supply.
- Sensor Installation: Install the provided oxygen sensor into the exhaust system and connect the MAP, IAT, and TPS sensors.
- Initial Setup: Power on the system and use the 4.5-inch display to input basic engine parameters.
- Self-Tuning: Start the engine and allow the ECU to self-tune the fuel delivery.
- Fine-Tuning (Optional): Use the display to adjust fuel parameters as needed.
BENEFITS OF USING THE FITECH MEAN STREET 800HP EFI SYSTEM MASTER KIT W/ FORCE FUEL (35208):
- Improved fuel efficiency compared to carburetors.
- Consistent performance across varying conditions.
- Simplified setup with self-tuning capabilities.
- Reliable fuel delivery with the Force Fuel system.
- Enhanced engine responsiveness.
- Ability to handle a nitrous oxide power adder.
FEATURES:
- High-Flow Design: 850 CFM throttle body for high-performance engines.
- High Flow Injectors: 62 lbs/hr for adequate fuel delivery.
- External High Flow Fuel Pump: 340 LPH for reliable fuel supply.
- Handheld Display: 4.5 inch for monitoring and tuning.
- Speed Density Fuel Metering: For accurate fuel calculations.
- Throttle Body Flange: 4-barrel square bore for easy mounting.
- Aluminum Material: Durable construction with a satin black finish.
-
