Description

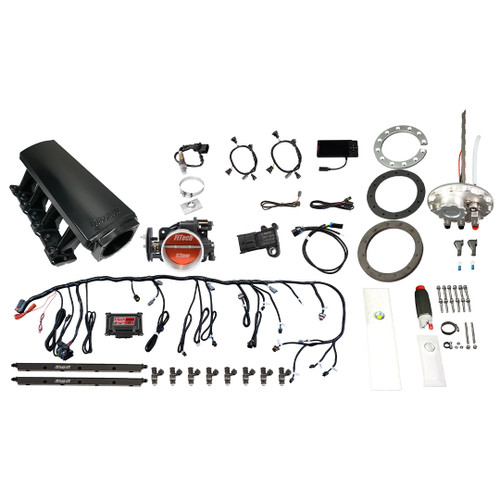

The FiTech Ultimate LS 500 HP EFI Long Intake w/ Master Kit (76306) provides a complete solution for converting your LS engine to electronic fuel injection. Designed for engines up to 500 horsepower, this kit includes everything needed for a comprehensive upgrade, from the intake manifold to the fuel pump and ECU. This system offers improved engine performance, efficiency, and fuel flexibility.
KEY FEATURES AND BENEFITS:
- High Performance: Designed for LS engines aiming for up to 500 horsepower with a multi-port injection system for precise fuel delivery.
- Reliable Fuel Supply: The included "Go Fuel" in-tank 340 LPH fuel pump ensures adequate fuel supply.
- High Airflow: A 92mm throttle body allows for optimal airflow.
- Optimal Fuel Volume: 36 lbs/hr injectors provide the necessary fuel volume for performance.
- Compatibility: Timing control and power adder compatible, supporting boost and nitrous oxide applications.
- Accurate Fuel Calculations: Features a speed density (MAP-N) metering style.
- Fuel Flexibility: Supports various fuel types including alcohol, gasoline, methanol, and flex fuel.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Timing Control Compatible: Yes
- Power Adder Compatible: Yes (Boost/Nitrous oxide)
- ECU Included: Yes
- Fuel Pump Included: Yes (In-tank, 340 LPH)
- Intake Manifold Included: Yes (Aluminum, Black Anodized)
- Throttle Body: 92mm (GM LS2 4-bolt)
- Injector Size: 36 lbs/hr
- Metering Style: Speed density (Map-N)
- Fuel Type: Alcohol, Gasoline, Methanol, Flex
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing intake manifold and fuel system components.
- Fuel Pump Installation: Install the in-tank fuel pump module within your fuel tank, ensuring proper connections.
- Intake Manifold and Throttle Body Installation: Mount the provided intake manifold and 92mm throttle body onto the LS engine.
- Injector Installation: Install the 36 lbs/hr injectors into the intake manifold.
- Sensor Connections: Connect the MAP, IAT, TPS, and oxygen sensors to their respective locations.
- Wiring Harness Installation: Route and connect the wiring harness to the ECU and all sensors and injectors.
- ECU Setup: Mount the ECU and configure the system using the calibration module.
- Fuel Pressure Regulation: Connect and adjust the fuel pressure regulator.
- Testing and Calibration: Check all connections, prime the fuel system, and start the engine. Perform necessary calibrations.
BENEFITS OF USING THE FITEC ULTIMATE LS 500 HP EFI LONG INTAKE W/ MASTER KIT (76306):
- Improved Engine Performance: Provides accurate fuel delivery and enhanced responsiveness.
- Increased Fuel Efficiency: More efficient than traditional carburetor systems.
- Enhanced Throttle Response: Offers better drivability.
- Simplified Installation: Comprehensive kit includes all necessary components.
- Modern Engine Management: Utilizes speed density metering for optimal performance.
- Reliable Fuel Delivery: High flow fuel pump included ensures consistent performance.
- Power Adder Capability: Supports the addition of boost or nitrous for extra power.
FEATURES:
- Black Anodized Aluminum Intake Manifold: Durable and lightweight.
- Cast Aluminum 92mm Throttle Body: Designed for high airflow.
- In-Tank Fuel Pump: 340 LPH flow rate for reliable fuel supply.
- 36 lbs/hr Fuel Injectors: Provide necessary fuel delivery for performance.
- Complete Wiring Harness: Included for easy installation.
- Included Sensors: MAP, IAT, TPS, and oxygen sensors for accurate readings.
- Calibration Module Included: For system configuration and optimization.
- Supports Boost/Nitrous Power Adders: Designed for enhanced performance.
- Speed Density Metering Style: For precise fuel management.
- Supports Multiple Fuel Types: Offers versatility for different applications.
-
