Description

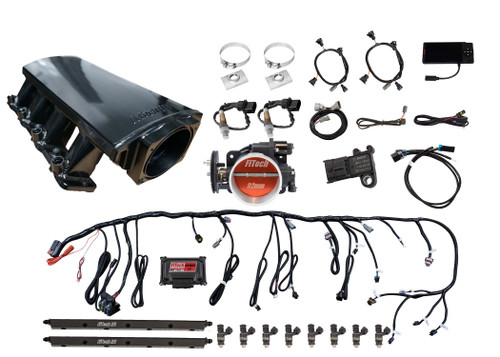

The FiTech Ultimate LS Kit LS3/L92 500HP w/Trans Control (70012) is a comprehensive solution for simplifying LS engine installations. Designed for LS3/L92 engines, this kit provides everything needed for a complete induction system, eliminating the need for sourcing mismatched parts. This system is ideal for DIY enthusiasts and professionals alike, offering a user-friendly experience with self-tuning capabilities.
KEY FEATURES AND BENEFITS:
- High Power Rating: Rated for up to 500 horsepower, ideal for performance applications.
- Transmission Control: Integrated control for GM 4L60, 4L65, 4L70, and 4L80 automatic transmissions.
- Self-Learning ECU: Coupled with a touchscreen hand-held controller for simplified setup and tuning.
- 92mm Billet Throttle Body: Ensures optimal airflow for enhanced performance.
- High-Volume Fuel Rails: Guarantees effective fuel delivery.
- Plug-and-Play Wiring Harness: Streamlines installation and setup.
- Compatibility: Works with 24X and 58X crank and cam signals.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Transmission Control: Yes (GM 4L60, 4L65, 4L70, 4L80)
- Throttle Body: 92mm billet aluminum
- Fuel Injectors: 36 lbs./hr.
- ECU: Self-learning with touchscreen controller
- Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
- Intake Material: Aluminum, black anodized
HOW TO USE:
- Install the Intake Manifold: Mount the intake manifold and throttle body onto the LS3/L92 engine.
- Mount Fuel Rails: Attach the high-volume billet fuel rails and connect the 36 lbs./hr. fuel injectors.
- Connect Wiring Harness: Plug in the wiring harness to the engine and transmission.
- Install Sensors: Set up the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
- Connect Controller: Link the touchscreen hand-held controller to the ECU.
- Configure Transmission Settings: Adjust the transmission control settings for your specific transmission.
- Start the Engine: Start the engine and allow the self-learning ECU to calibrate the fuel and spark settings.
- Fine Tune: Use the touchscreen controller to make adjustments and datalog as needed.
BENEFITS OF USING THE FITECH ULTIMATE LS KIT LS3/L92 500HP W/TRANS CONTROL (70012):
- Simplifies LS engine swaps.
- Ensures precise fuel and spark control.
- User-friendly tuning capabilities for easy adjustments.
- Integrated transmission control for improved performance.
- Eliminates mismatched parts and complex wiring.
- Delivers modern EFI performance.
FEATURES:
- Corrosion-Resistant Construction: Black anodized aluminum enhances durability.
- High-Flow Throttle Body: Cable-operated design for better airflow.
- Bosch Wideband-Controlled Oxygen Sensor: For accurate air-fuel ratio monitoring.
- Stainless Oxygen Sensor Bung: Facilitates easy installation.
- Coil Compatibility: Works with both car and truck coils.
- AN Fittings and Fuel Crossover: For effective fuel delivery.
- Custom Camshaft Support: Compatible with various custom camshafts.
- Vacuum Requirement: Designed for applications requiring at least 6 inches of vacuum at idle.
- Programmable Touchscreen Controller: Includes data logging capabilities.
- Factory Coil Pack Sub-Harness: Required for installation.
-
