Description

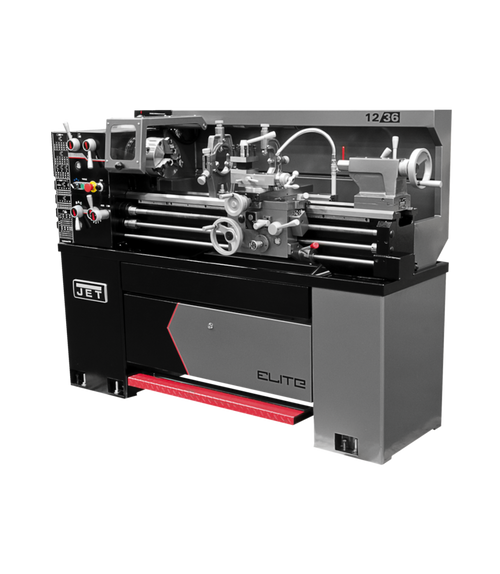

Jet E-1236VS Lathe With ACU-RITE 203 DRO (892303) is a compact yet powerful machine designed for precision turning and cutting. Ideal for educational institutions, small workshops, and engineering laboratories, this lathe offers a robust set of features in a compact footprint.
KEY FEATURES AND BENEFITS:
- Compact Design: Perfect for limited workspace, without compromising performance.
- Powerful Motor: Delivers efficient cutting and turning capabilities.
- ACU-RITE 203 DRO: Ensures precise measurements for accurate work.
- Inverter Drive System: Provides variable spindle speeds for versatility.
- Safety Features: Includes chuck guards, chip pan, and overload clutch for user protection.
SPECIFICATIONS:
- Size: 12 x 36
- Swing Over Bed: 12"
- Swing Over Cross Slide: 7-5/16"
- Spindle Bore: 1-9/16"
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Motor: 2HP, 230V, 3ph
- Number of Inch Threads: 34
- Number of Metric Threads: 33
- Range of Spindle Speeds (RPM): 0 - 2,000
- Length of Gap: 9-1/2"
- Max Tool Size: 1/2 x 1/2"
- Compound Slide Travel: 3-1/2"
- Range of Longitudinal Feeds (IPR): 0.0016 - 0.046
- Range of Cross Feeds (IPR): 0.0005 - 0.015
- Range of Inch Threads (TPI): 2 - 56
- Range of Metric Threads: 0.5 - 12
- Number of Longitudinal and Cross Feed Rates: 50
- Steady Rest Capacity: 1/4 - 2-1/2"
- Overall Dimensions (L x W x H): 71 x 30 x 60"
- Weight: 1213 lbs
HOW TO USE:
- Setting Up:
- Ensure the lathe is placed on a stable, level surface.
- Connect the lathe to a properly grounded electrical outlet.
- Check all safety guards and components are securely in place.
- Basic Operation:
- Turn on the power switch.
- Set the desired spindle speed using the inverter drive.
- Secure the workpiece between the lathe centers or in a chuck.
- Engage the feed mechanism for longitudinal or cross feeds.
- Use the tool post to hold and position the cutting tool.
- Carefully operate the controls to perform the desired cutting or turning operation.
- Safety Precautions:
- Always wear safety goggles and appropriate protective clothing.
- Never reach into the rotating workpiece area.
- Use caution when handling sharp cutting tools.
- Follow the lathe's operating manual for detailed instructions.
BENEFITS OF USING JET E-1236VS LATHE WITH ACU-RITE 203 DRO (892303):
- Precise and Accurate: Cutting and turning capabilities ensure high precision.
- Versatile: Suitable for various materials and applications.
- Durable Construction: Built for long-lasting performance.
- Enhanced Safety: Features designed for user protection.
- Compact Design: Efficient use of workspace.
FEATURES:
- Electromagnetic brake for quick stops
- Inverter drive for variable spindle speeds
- Ball bearing mounted steady and follow rests
- CNC style lighting with enclosed splash guard
- Chuck guards and front-facing chip pan
- Hardened and ground gears for smooth operation
- Integrated locking tool cabinet
- LED RPM readout for precise speed control
- CSA/CUS certified for safety and quality
-
