Description

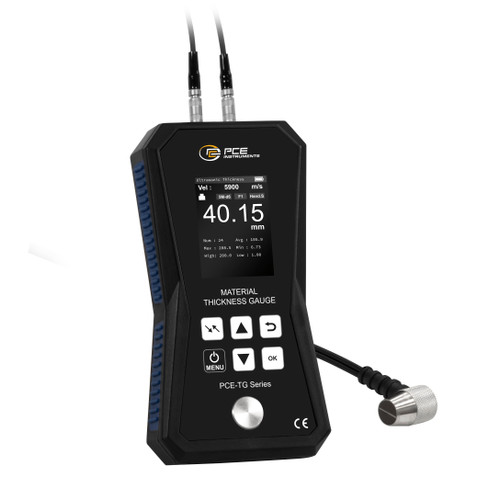

PCE Instruments Thickness Gauge (PCE-TG 75A) is a high-precision device designed for measuring material thickness in industrial applications. With a measuring range up to 225 mm, it ensures accurate results for metals, plastics, ceramics, and other homogeneous materials.
This thickness gauge features a built-in data memory, an easy-to-read TFT color display, and adjustable sonic velocity settings. With its ability to store maximum and minimum limit values, it is ideal for quality control and material inspection tasks.
- Specifications and Dimensions
- Measuring Range: 1 mm ... 99.99 mm (Resolution: 0.01 mm)
- Measuring Range: 100 mm ... 225 mm (Resolution: 0.1 mm)
- Accuracy: ±0.5 % of the measured value + 0.05 mm
- Sensor Designation: PCE-TG 5M10d
- Sensor Frequency: 5 MHz
- Sensor Temperature Range: -10 ... 60 °C
- Measurable Materials: Steel, aluminum, zinc, silver, gold, metal, plastic, ceramic, glass, and other homogeneous materials
- Minimum Diameter of Pipes: 30 mm
- Display Type: 2.4-inch TFT color screen
- Storage Medium: Internal memory (capacity: 500 values)
- Automatic Switch-Off: Adjustable from 2 to 30 minutes
- Sonic Speed Adjustable: 1000 ... 9999 m/s
- Menu Language: English (US), Chinese
- Protection Class: IP52
- Power Supply: 3x 1.5V AA batteries (alkaline-manganese)
- Battery Capacity: 3000 mAh
- Weight: 230 g
- Dimensions: 168 x 87 x 35 mm
- Operating Conditions: 0 ... 40 °C, 0 ... 90 % relative humidity
- Storage Conditions: 0 ... 40 °C, 0 ... 90 % relative humidity
- Key Features and Benefits
- Measures material thickness up to 225 mm with high accuracy
- Supports multiple materials including metals, plastics, and ceramics
- Built-in memory stores up to 500 measured values
- Calibration reference mounted on the housing for easy setup
- Easy-to-read TFT display with adjustable settings
- Automatic switch-off feature to conserve battery life
- Optional ISO calibration certificate available
- Specifications and Dimensions
-
